EVIRONMENTAL RATING
-----------------(MAXIMUM)---------------

Operating Temperature ...................-65°C to +150°C
Storage Temperature.......................-65°C to +200°C
Power Dissipation @ 25°C..............150mW. Derate
...............................................Linearly to zero at 150°C
Soldering Temperature...........230°C for 5 seconds

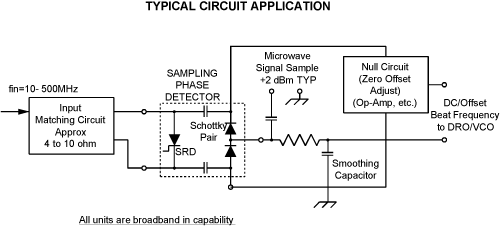

Sampling Phase Detectors

Part Number Case Style
Schottky Pair
Capacitors
SRD
Freq Output
DRO/VCO
Vf(typ)
Cj0(typ) @ 0V
RD(typ)
Ct0(typ) @ 0V
Cj6(typ) @ 6V
t L(typ)
tt (typ)
(max)
Signal Power
If= 1mA
f=1 MHz
If= 5mA
f=1 MHz
f=1 MHz
If= 10/6mA
(mV)
(pF)
( W)
(pF)
(pF)
(nS)
(pS )
(GHz)
(dBm)
MP7100
300
0.1
16
0.5
0.3
25
50
24
0-3
MP7100M M
300
0.1
16
0.5
0.3
25
50
24
0-3
MP7200
400
0.1
16
0.5
0.3
25
50
24
3-6
MP7200M M
400
0.1
16
0.5
0.3
25
50
24
3-6
MP7300
600
0.1
16
0.5
0.3
25
50
24
6-10
MP7300M M
600
0.1
16
0.5
0.3
25
50
24
6-10

Click below to down load Pdf data
Sampling Phase Detectors Pdf

(MP7100/MP7100M)
