Our Products

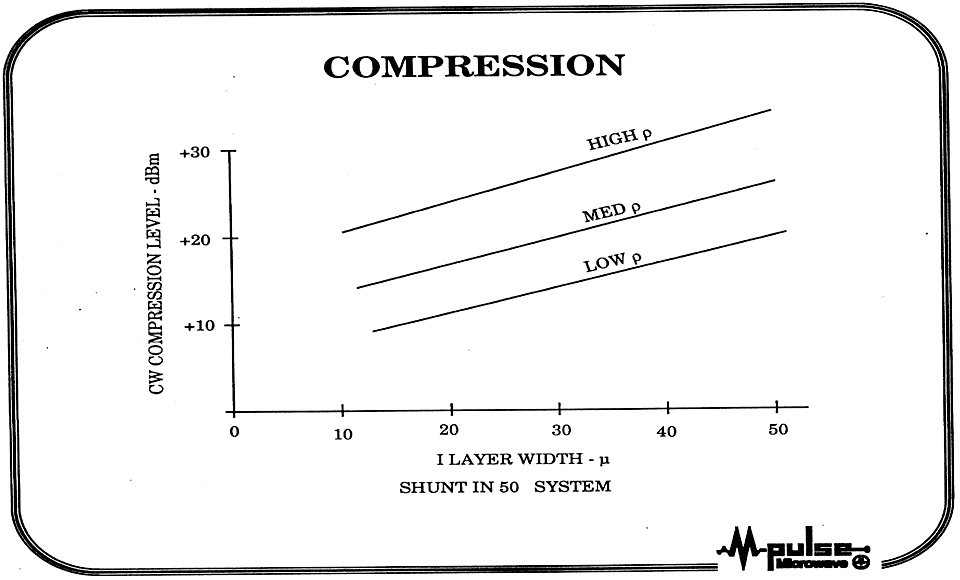

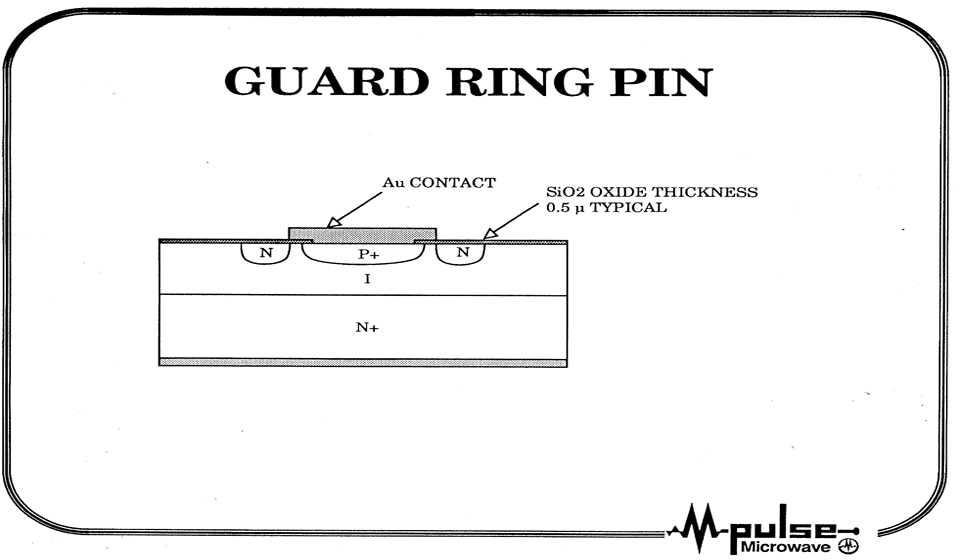

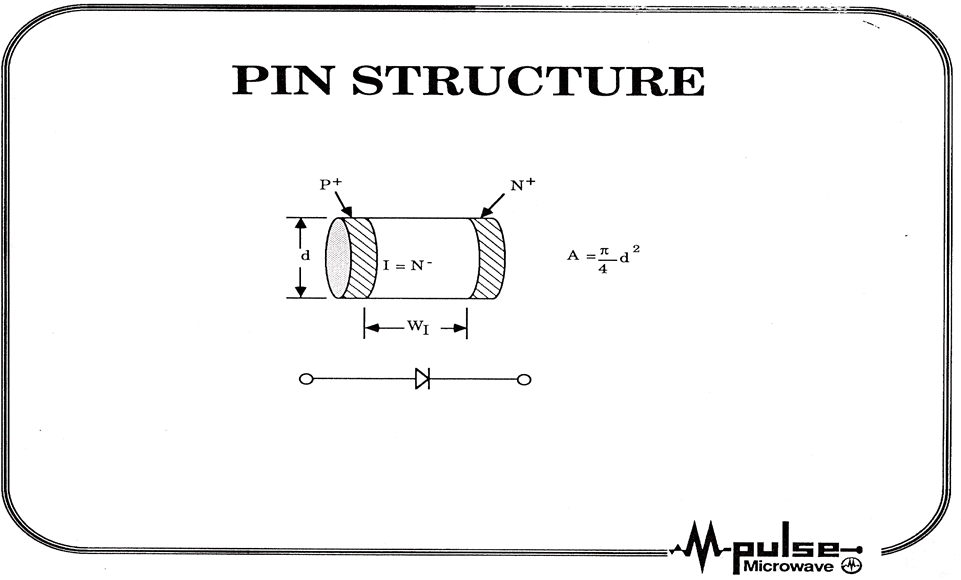

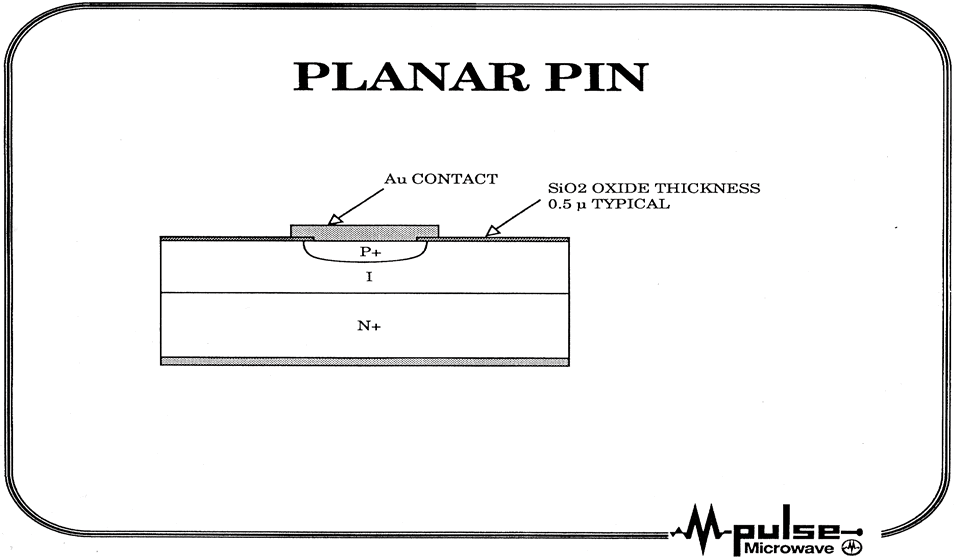

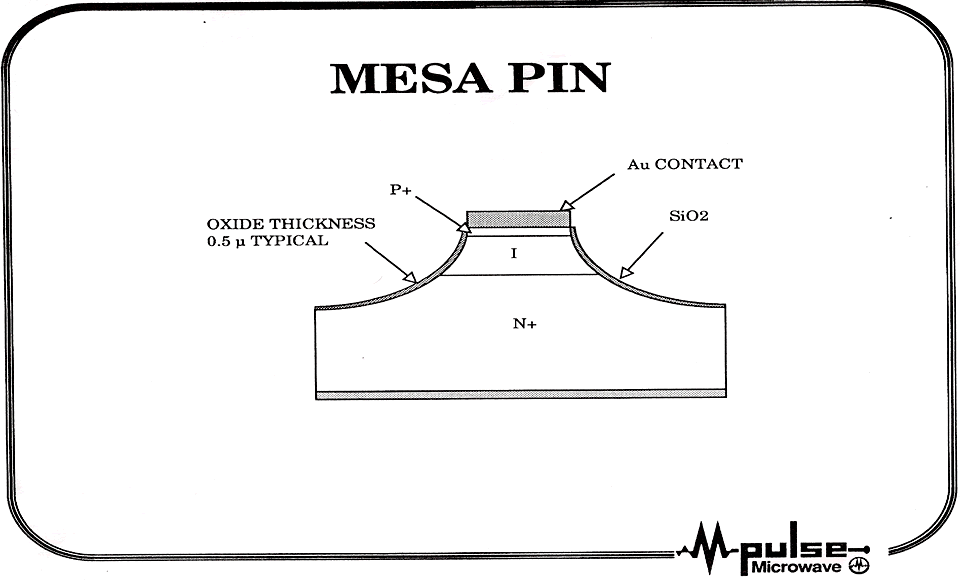

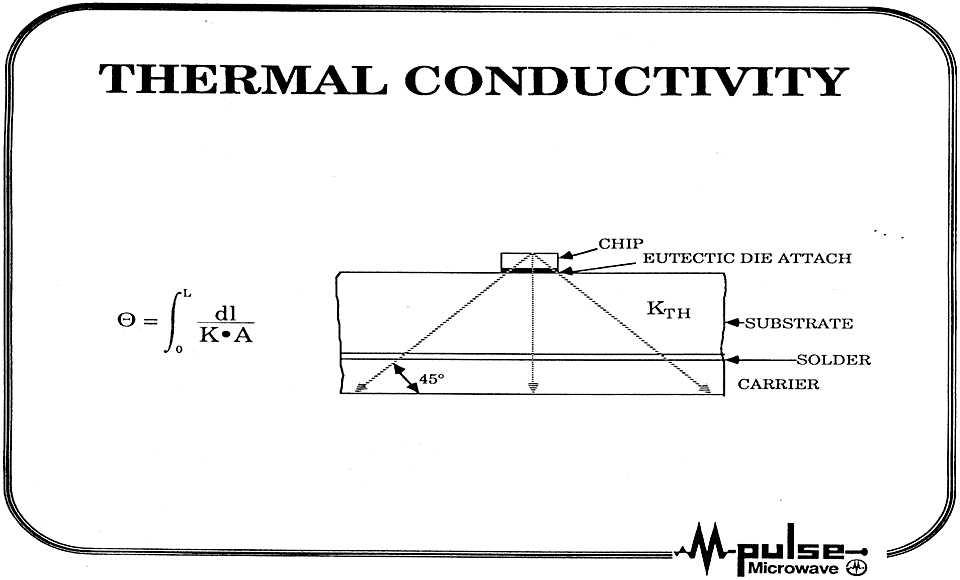

PIN Diodes

Product Technical Data Sheet (click here to download)

Case Style Descriptions (click to follow link)

Part Number	Application	Case Style	Vb(min, Ir=10mA) (Volts)	Cjd(max @ 10V, f=1 MHz) (pF)	Rs(typ, If=10mA) (Ω)	τL(typ) (nanoseconds)	Peak Pin (max, 1.0 μS) (dBm)	Threshold (typ) (dBm)	Leakage Pout (typ) (dBm)	Insertion Loss (typ) (dBm)	CW Power in (max) (W)	ϑjc (typ) (C/W)
MP5021	Limiter Diode	C7	15	0.12	2	10	47	7	21	0.1	2	100
MP5022	Limiter Diode	P2	15	0.12	2	10	47	7	21	0.1	2	100
MP5023	Limiter Diode	G1	15	0.12	2	10	47	7	21	0.1	2	100
MP5024	Limiter Diode	E1	15	0.12	2	10	47	7	21	0.1	2	100
MP5025	Limiter Diode	E105	15	0.12	2	10	47	7	21	0.1	2	100
MP5026	Limiter Diode	C7	15	0.15	2	10	50	7	24	0.1	3	80
MP5027	Limiter Diode	P2	15	0.15	2	10	50	7	24	0.1	3	80
MP5028	Limiter Diode	G1	15	0.15	2	10	50	7	24	0.1	3	80
MP5029	Limiter Diode	E1	15	0.15	2	10	50	7	24	0.1	3	80
MP5030	Limiter Diode	E105	15	0.15	2	10	50	7	24	0.1	3	80
MP5031	Limiter Diode	C7	30	0.08	2	20	47	12	24	0.1	3	80
MP5032	Limiter Diode	P2	30	0.08	2	20	47	12	24	0.1	3	80
MP5033	Limiter Diode	G1	30	0.08	2	20	47	12	24	0.1	3	80
MP5034	Limiter Diode	E1	30	0.08	2	20	47	12	24	0.1	3	80
MP5035	Limiter Diode	E105	30	0.08	2	20	47	12	24	0.1	3	80
MP5036	Limiter Diode	C7	30	0.12	2	20	50	12	27	0.1	4	60
MP5037	Limiter Diode	P2	30	0.12	2	20	50	12	27	0.1	4	60
MP5038	Limiter Diode	G1	30	0.12	2	20	50	12	27	0.1	4	60
MP5039	Limiter Diode	E1	30	0.12	2	20	50	12	27	0.1	4	60
MP5040	Limiter Diode	E105	30	0.12	2	20	50	12	27	0.1	4	60
MP5041	Limiter Diode	C7	70	0.12	1.5	35	53	15	27	0.1	3	40
MP5042	Limiter Diode	P2	70	0.12	1.5	35	53	15	27	0.1	3	40
MP5043	Limiter Diode	G1	70	0.12	1.5	35	53	15	27	0.1	3	40
MP5044	Limiter Diode	E1	70	0.12	1.5	35	53	15	27	0.1	3	40
MP5045	Limiter Diode	E105	70	0.12	1.5	35	53	15	27	0.1	3	40
MP5046	Limiter Diode	C7	70	0.15	1.5	35	56	15	29	0.15	4	20
MP5047	Limiter Diode	P2	70	0.15	1.5	35	56	15	29	0.15	4	20
MP5048	Limiter Diode	G1	70	0.15	1.5	35	56	15	29	0.15	4	20
MP5049	Limiter Diode	E1	70	0.15	1.5	35	56	15	29	0.15	4	20
MP5050	Limiter Diode	E105	70	0.15	1.5	35	56	15	29	0.15	4	20
MP5220	Switching Diode	B1	70	0.02	6	30
MP5221	Switching Diode	B1	70	0.025	5	50
MP5222	Switching Diode	B1	70	0.035	4	60
MP5230	Switching Diode	M2	70	0.045	6	30
MP5232	Switching Diode	M2	70	0.055	4	60
MP5081	High Frequency	C9	100	0.08	2	100
MP5206	Low Cost Diode	C10	100	0.25	1	200
MP5207	Low Cost Diode	P2	100	0.25	1	200
MP5208	Low Cost Diode	G1	100	0.25	1	200
MP5209	Low Cost Diode	E1	100	0.25	1	200
MP5210	Low Cost Diode	E105	100	0.25	1	200
MP5506	Attenuator Diode	C12	100	0.15	5	200
MP5507	Attenuator Diode	P2	100	0.15	5	200
MP5508	Attenuator Diode	G1	100	0.15	5	200
MP5509	Attenuator Diode	E1	100	0.15	5	200
MP5510	Attenuator Diode	E105	100	0.15	5	200
MP5082	High Frequency	P2	100	0.08	2	50	60	20	39	0.15	6	20
MP5083	High Frequency	G1	100	0.08	2	50	60	20	39	0.15	6	20
MP5084	High Frequency	E1	100	0.08	2	50	60	20	39	0.15	6	20
MP5085	Limiter Diode	E105	100	0.08	2	50	60	20	39	0.15	6	20
MP5086	Limiter Diode	C7	100	0.15	2	50	63	20	41	0.15	10	10
MP5087	Limiter Diode	P2	100	0.12	2	50	63	20	41	0.15	10	10
MP5088	Limiter Diode	G1	100	0.12	2	50	63	20	41	0.15	10	10
MP5089	Limiter Diode	E1	100	0.12	2	50	63	20	41	0.15	10	10
MP5090	Limiter Diode	E105	100	0.12	2	50	63	20	41	0.15	10	10
MP5201	General Purpose Diode	C8	200	0.12	2	200
MP5202	General Purpose Diode	P2	200	0.12	2	200
MP5203	General Purpose Diode	G1	200	0.12	2	200
MP5204	General Purpose Diode	E1	200	0.12	2	200
MP5305	General Purpose Diode	E105	200	0.12	2	200
MP5501	High Power Diode	C11	200	0.25	3	200
MP5502	High Power Diode	P2	200	0.25	3	200
MP5503	High Power Diode	G1	200	0.25	3	200
MP5504	High Power Diode	E1	200	0.25	3	200
MP5505	High Power Diode	E105	200	0.25	3	200
